Vertex Push Sincro with 3D regulation External drawer, height 93mm, 40kg, depth 350mm, Steel, Anthracite Grey

SKU 3203035 / EAN 8432393322780

Become a customer

Vertex Push Sincro with 3D regulation External drawer, height 93mm, 40kg, depth 350mm, Steel, Anthracite Grey-Primary

Vertex Push Sincro with 3D regulation External drawer, height 93mm, 40kg, depth 350mm, Steel, Anthracite Grey-1

Vertex Push Sincro with 3D regulation External drawer, height 93mm, 40kg, depth 350mm, Steel, Anthracite Grey-2

Vertex Push Sincro with 3D regulation External drawer, height 93mm, 40kg, depth 350mm, Steel, Anthracite Grey-3

Vertex Push Sincro with 3D regulation External drawer, height 93mm, 40kg, depth 350mm, Steel, Anthracite Grey-4

Vertex Push Sincro with 3D regulation External drawer, height 93mm, 40kg, depth 350mm, Steel, Anthracite Grey-5

Vertex Push Sincro with 3D regulation External drawer, height 93mm, 40kg, depth 350mm, Steel, Anthracite Grey-6

Depth	Packaging	Finishing	SKU
350	1 KIT	White painted	3203012
400	1 KIT	White painted	3203112
450	1 KIT	White painted	3203212
500	1 KIT	White painted	3203312
350	1 KIT	Anthracite grey	3203035
400	1 KIT	Anthracite grey	3203135
450	1 KIT	Anthracite grey	3203235
500	1 KIT	Anthracite grey	3203335

Product features

Hardware kit necessary for the assembly of a Push Sincro drawer of height 93 mm and depth 350 mm, except for the border, back and bottom.
Synchronized total extraction runners and load capacity of 40 kg.

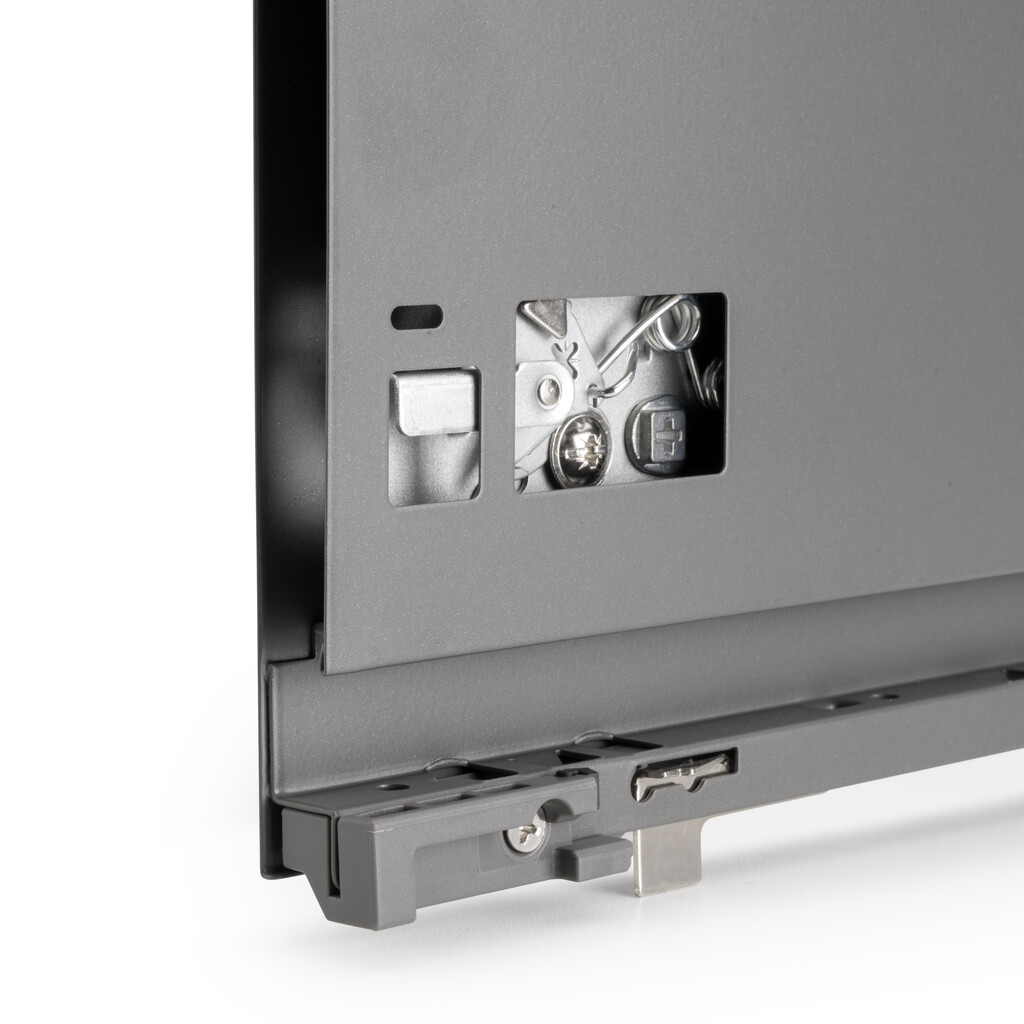

It has a 3D front adjustment: vertical by means of an eccentric of ±2 mm, horizontal ±1 mm, inclination -1,5/+4 mm.
The guides are adapted for mounting the synchronizer rod (not included in the kit).
Made of anthracite gray painted steel.

Components

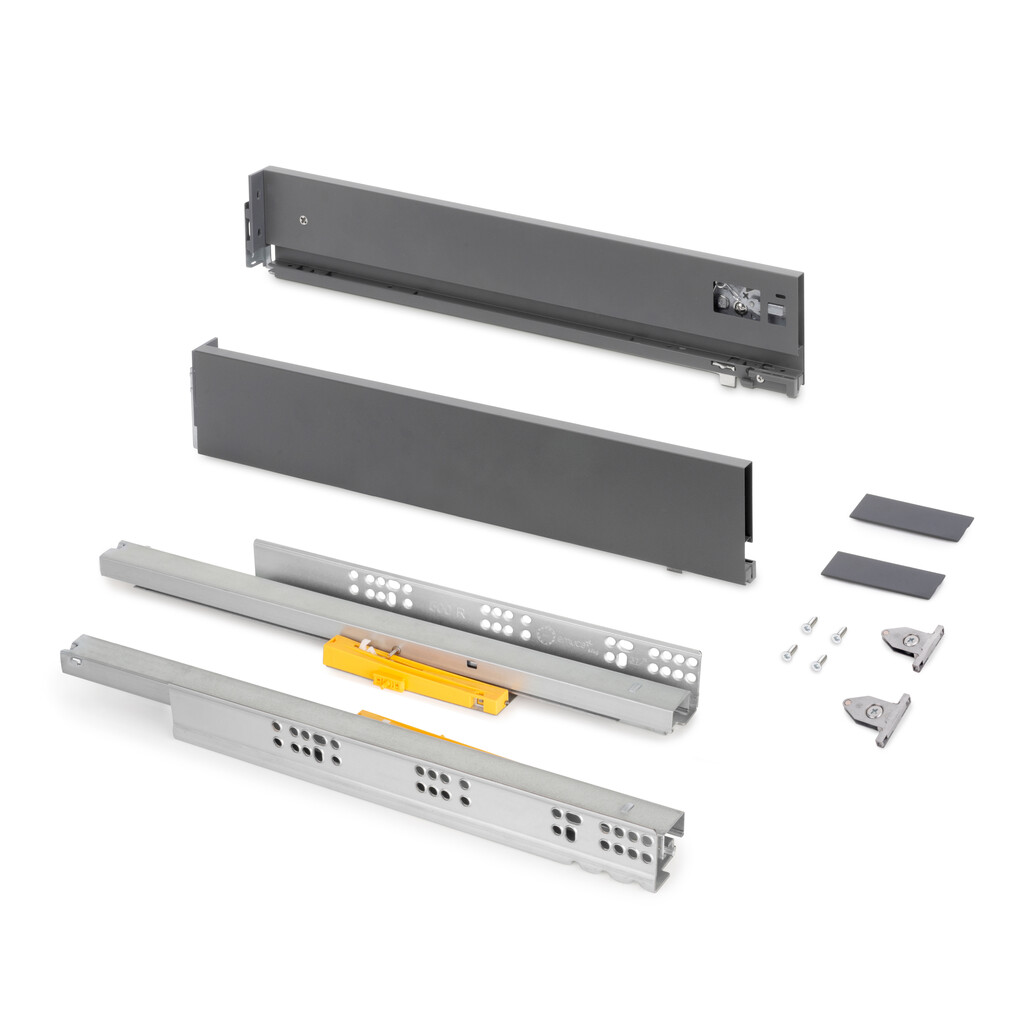

1 pair of runners, 1 set of sides, 1 set of hooks for frontal drawer, screws

Product description

Documentation

Sketch Assembly instructions

Frequently asked questions

How do you assemble a Vertex 3D drawer with an extra slim design and soft closing in kitchen, bathroom and home furniture?

The following video shows how to assemble such a box in a simple way:

How can I easily configure my Vertex drawer unit?

At Emuca, we make it easy for you. Here you can download this Excel file that will help you configure your drawer unit step by step. Simply enter the module measurements (height, thickness, overlap, etc.) and specify how many drawers you want. This file allows you to:

Automatically calculate the machining dimensions of the drawer fronts (H1, H2, H3...) (mm).
Determine the height of each drawer front (mm).
And obtain the machining dimensions required to manufacture the drawer fronts (X, Y) (mm).

It also includes visual representations so you can check the result and avoid errors. Ideal for carpenters, designers or DIY enthusiasts who want a practical and accurate solution.
